Delta DC Wallbox

DC 50 kW - Fast Charger

Output: 50 kW + 22 kW

Protection: IP55/ IK10

Connectivity: Ethernet, Cellular

• 50 kW DC fast charging + 22 kW AC socket

• Charging upto 3 vehicles simultaneously

• Wall or pedestal mount flexibility

• Kahramaa-compliant & CE-certified

• Sleek and space-efficient design

• Ideal for hotels, malls, and mixed-use commercial sites

Ideal for:

Hospitality

Retail

2 x CCS/ CHAdeMO + Type 2 AC (optional)

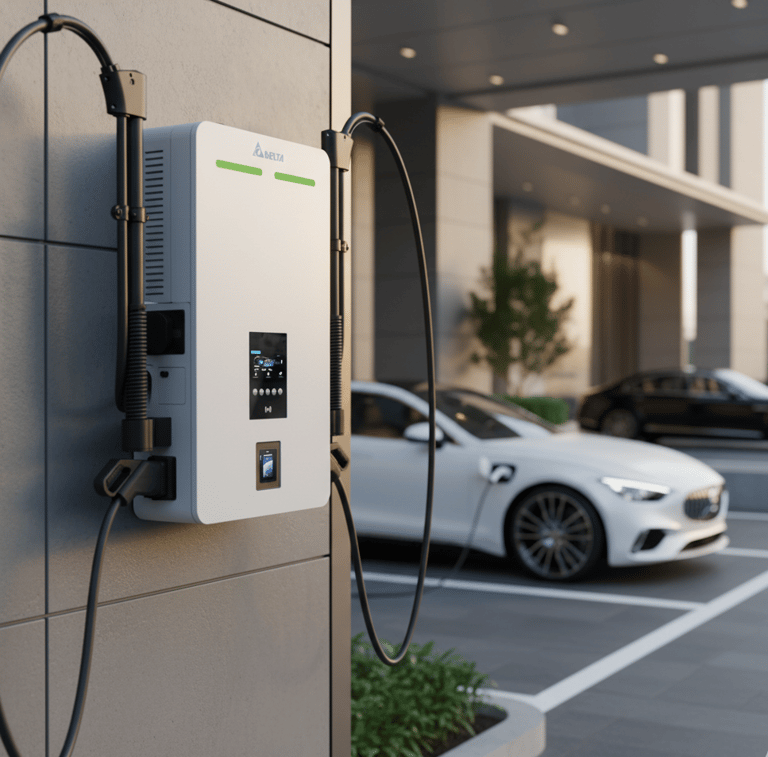

The Delta DC Wallbox 50 kW charger is a compact, Kahramaa-compliant and CE-certified fast charging solution designed for hotels, commercial complexes, and retail destinations. Manufactured in Europe, it features two DC charging guns and an optional 22 kW AC socket, enabling simultaneous charging for multiple vehicles. Its sleek, minimal design supports both wall-mounted and pedestal-mounted installations, making it an ideal choice for space-conscious locations seeking fast, reliable, and future-ready EV charging infrastructure.

Standards & Certifications:

EN IEC 61851-1:2019/AC2023-12, EN 61851-23:2014/AC2016-06, EN 61851-24:2014/AC:2015, EN IEC 61439-1: 2011, EN IEC 61851-21-2: 2021, EN IEC 62311:2020, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-52 V1.2.1, EN 61000-6-2:2019, EN 61000-6-4:2021, ETSI EN 300 330 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V15.1.1, EN 301 908-2 V13.1.1:2020

OCCP 1.6

Smart controls & Features

Commercial

For 100 km
18 min*

20-80%
44 min*

* Disclaimer: All values are for reference only and may vary depending on vehicle charging capability, ambient conditions, charger configuration, battery state, and site power availability. Actual charging times and range gained may differ in real-world conditions.
Reference Vehicle: Tesla Model 3 Standard Range | Battery: ≈ 60.9 kWh usable | Energy Consumption: 15 kWh / 100 km
