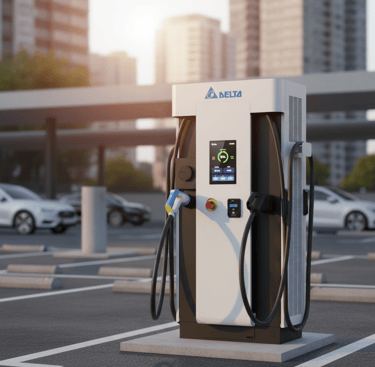

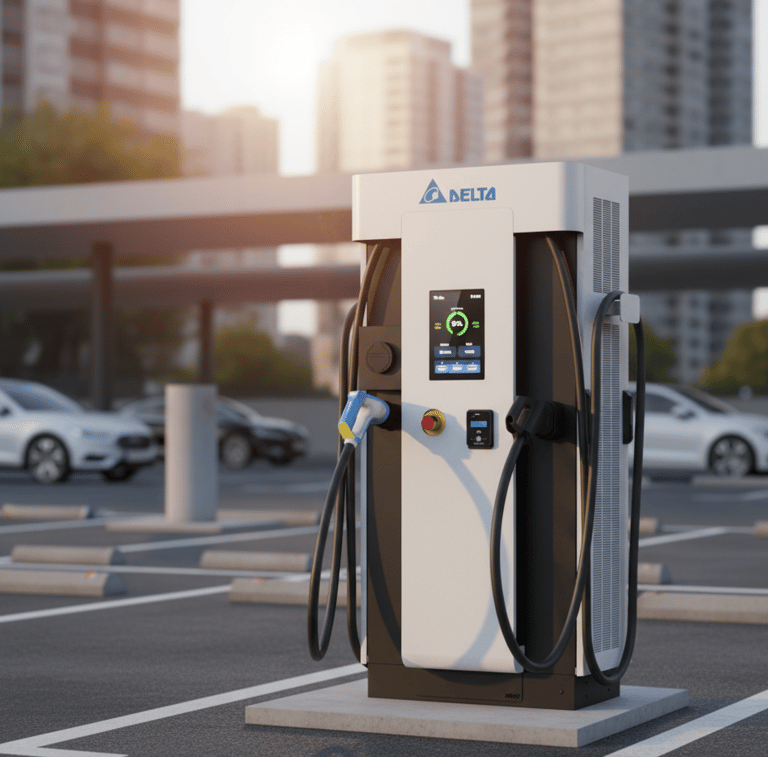

Delta DC Slim 100

DC 100 kW max - Fast Charger

Output: 100 kW + 22 kW

Protection: IP55/ IK10

Connectivity: Ethernet, Cellular

• 100 kW DC fast charging + 22 kW AC socket

• Modular: can be configured in 50, 75 and 100 kW

• Dual DC guns for simultaneous charging

• Kahramaa-approved & CE-certified for Qatar’s EV standards

• Slim, space-saving design for parking lots and fleet depots

• Smart connectivity with OCPP, Wi-Fi/Ethernet integration

• Suitable for commercial buildings, fleets, and public parking spaces as Public EV charger.

Ideal for:

Parking

Fleets

2 x CCS/ CHAdeMO + Type 2 AC Socket

Delta DC Slim 100 kW EV Charger – Fast and Flexible Charging for Commercial & Fleet Operations in Qatar. The Delta DC Slim 100 kW is a high-performance, Kahramaa-compliant and CE-certified fast charger, designed for commercial properties, fleet depots, and parking facilities. Manufactured in Europe, it features two DC charging guns and a 22 kW AC socket, enabling efficient multi-vehicle charging. Its sleek and minimal footprint makes it ideal for urban installations with space constraints.

Standards & Certifications:

IEC 61851-21-2:2018, EN 61851-1:2019, EN 61851-23:2018, EN 61439-1: 2020, EN 61439-7: 2018, EN 62311:2019, EN 62479:2010, EN 17186:2019, IEC 62196-1:2014, IEC 62196-2:2016, IEC 62196-3:2020

OCCP 1.6, HW ready for 2.0

Smart controls & Features

Commercial

For 100 km
9 min*

20-80%
22 min*

* Disclaimer: All values are for reference only and may vary depending on vehicle charging capability, ambient conditions, charger configuration, battery state, and site power availability. Actual charging times and range gained may differ in real-world conditions.
Reference Vehicle: Tesla Model 3 Standard Range | Battery: ≈ 60.9 kWh usable | Energy Consumption: 15 kWh / 100 km
